54mm X Ray High Voltage Cables Epoxy Curing Agent Material Pvc Jacket

Name: 54mm X Ray High Voltage Cables Epoxy Curing Agent Material Pvc Jacket
Brand: SAILRAY
Price: 1 USD

Brand Name : SAILRAY

Model Number : SRX-Z75

Certification : CE

Place of Origin : CHINA

MOQ : 10PAIRS

Payment Terms : T/T, Western Union

Supply Ability : 1000PCS/MONTH

Delivery Time : 30WORK DAYS

Packaging Details : CARTON

Rated voltage : 75KVDC

Conductor Material : Copper

Insulation Material : Rubber

Application : High-voltage generator

Price : Negotiation

Contact Now

HV cable Medical x ray high voltage cables for X-ray Machine

Description:

This 3-conductor with rubber insulated high voltage cable's
typical applications are as followings:
1, Medical x-ray equipment like standard x-ray, computer tomography and angiography equipment.
2, Industrial and scientific x-ray or electron beam equipment like electron microscopy and x-ray diffraction equipment.
3, Low power high voltage testing and measuring equipment.

Connection Diagram:
54mm X Ray High Voltage Cables Epoxy Curing Agent Material Pvc Jacket

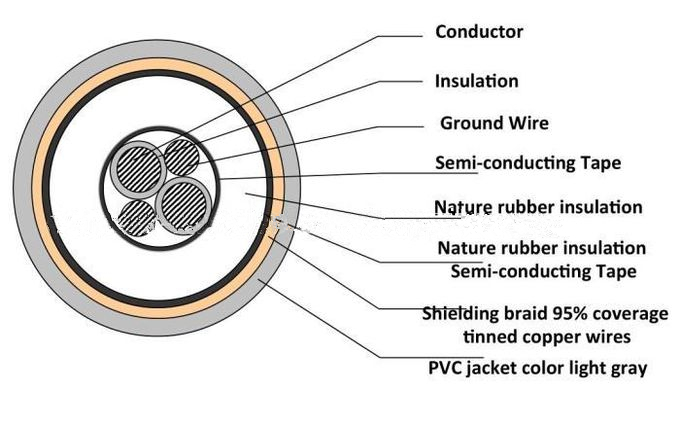

Cable Sectional Drawing

54mm X Ray High Voltage Cables Epoxy Curing Agent Material Pvc Jacket

Plug Sectional Drawing

54mm X Ray High Voltage Cables Epoxy Curing Agent Material Pvc Jacket

Technical Data

Electrical Data
Rated voltage			75KVdc
Routine test voltage (between conductor and copper braid)			90kVDC/10min
Routine test voltage (between conductor)			2kVAC/5min
Max D.C. Conductor resistance @20ºC			≤13.7Ω/Km
Insulated conductor resistance			≥1000MΩ·Km
Machnical Data:HV cable
Item			Construction	Remark
Conductor	Material		Tinned copper
	Wire gauge AWG		15
	Construction	pc/mm	19/0.32
	Diameter	mm	Nominal 1.6±0.03
Insulation	Material,Color		FEP	Two colors
	Thickness	mm	Nominal 0.3
	Diameter	mm	Nominal 2.2±0.1
Ground Wire	Material		Tinned copper
	Wire gauge AWG		18
	Construction	pc/mm	42/0.15
	Diameter	mm	Nominal1.6±0.03
Semi-conducting Tape	Thickness	mm	0.1
Semi-conducting Tape	Diameter	mm	4.7±0.2
Nature rubber insulation	Material,Color		Natural rubber	main material
	Thicknes	mm	Nominal 4.7
	Diameter	mm	Nominal 14.2±0.2
Nature rubber insulation Semi-conducting Tape	Thicknes	mm	0.1
Nature rubber insulation Semi-conducting Tape	Diameter	mm	14.5±0.2
Shielding Braid	Material		Tinned copper
	Construction		24/13/0.12
	Braiding Density		≥85%
	Diameter	mm	15.2±0.2
PVC Jacket	Material,Color		PVC elastomer	light grey
	Thicknes	mm	Nominal 1.2
	Diameter	mm	Nominal 17.8±0.3

Machnical Data: Plug
Item			Construction	Remark
HV Cable	Diameter	mm	17.8±0.3
EPOXY	Material		EPOXYCuring agent
EPOXY	Construction		Filled in the space between plug and HV cable
PBT plug	Size		According to the International Standard	Pin on the connector is silvered and demountable
Sleeve	Length	mm	54

54mm X Ray High Voltage Cables Epoxy Curing Agent Material Pvc Jacket
